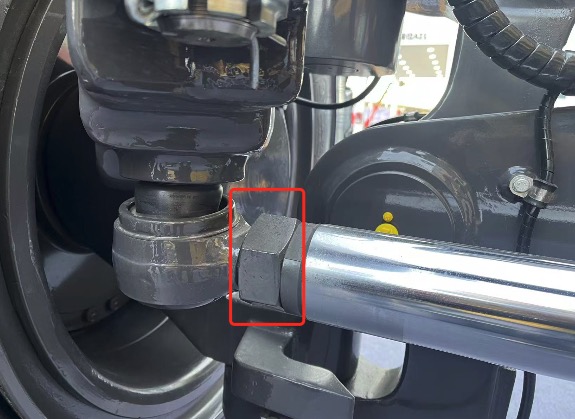

What is a nut on a hydraulic cylinder?

(1) Connection and fixing function

Connecting parts: The nut is an important component that connects the various parts of the hydraulic cylinder. It can tightly connect the cylinder barrel and the cylinder head together, ensuring that the hydraulic cylinder forms a closed working space, so that the hydraulic oil can build up pressure in it and push the piston to reciprocate.

Fixing the piston and the piston rod: In the hydraulic cylinder, the nut is used to fix the piston on the piston rod. This connection method must ensure that the relative position between the piston and the piston rod is fixed, ensuring that the power output of the hydraulic cylinder is stable and reliable.

(2) Sealing and anti-leakage function

During the installation process, the pre-tightening force generated by tightening the nut can prevent the hydraulic oil from leaking from the joint surfaces between the cylinder barrel and the cylinder head, the piston and the cylinder barrel, etc. And maintain a certain amount of compression to ensure the stability of the sealing performance and extend the service life of the hydraulic cylinder.

(3) Withstand pressure

When the hydraulic cylinder is working, the nut needs to withstand the pressure from the hydraulic system and the force transmitted by the piston, piston rod and other components. It must have sufficient strength and rigidity to ensure that it will not deform, loosen or be damaged under high pressure and high load, ensuring the safe operation of the hydraulic cylinder.

How do you tighten a hydraulic nut?

The following is the method for tightening hydraulic nuts provided by our company:

(1) Preparation

Clean the threads and nuts: Before installation, make sure that the threads and nuts are clean and free of impurities, oil and rust.

Check the nuts and bolts: Confirm that the size, pitch and other parameters of the nuts and bolts match, and the threads are not damaged.

Prepare tools and equipment: Prepare hydraulic pumps, hydraulic lines, pressure gauges and other equipment, and ensure that they work properly.

(2) Tightening steps

Install the hydraulic nut: screw the hydraulic nut into the bolt to ensure that the nut and the bolt fit well.

Connect the hydraulic system: connect the oil filling hose of the hydraulic pump to the oil filling port of the hydraulic nut. Ensure that the hydraulic system is well sealed and leak-free.

Exhaust operation: open the exhaust port of the hydraulic nut, slowly pressurize, and exhaust the air in the nut. When the hydraulic oil flows out of the exhaust port, close the exhaust port.

Pressure tightening: slowly increase the hydraulic pressure to move the piston or pressure ring in the hydraulic nut to generate preload.

Lock the nut: after reaching the preload pressure, use a wrench to tighten the hydraulic nut to ensure that the nut and the bolt fit tightly. Release the hydraulic pressure and check whether the nut is loose.

Qingdao Micro Precision Machinery Co. is ready to offer top-quality Cylinder Nut to customers worldwide.

For 24 hours contact details as below:

Email: cyndee@wghydrauliccylinder.com

          sales@wghydrauliccylinder.com

Mobile/whatsApp/WeChat: 0086-13793230712

View as

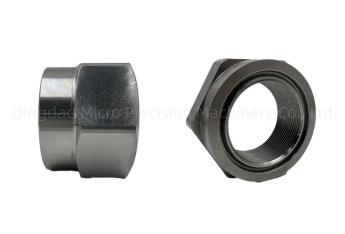

油圧シリンダーの油圧ナット

油圧シリンダーの油圧ナット

油圧シリンダー用の油圧ナット:油圧ナット:油圧ナットは、主に主にモバイル機械油圧シリンダー、工業工学油圧シリンダー、海洋工学油圧シリンダー、海洋工学油圧シリンダー、エネルギー技術油圧シリンダー、エネルギー技術油圧シリンダー、エネルギー技術油圧シリンダーなどで主に使用されています。信頼性の高い品質と安定した配信を備えた油圧シリンダーは、長年の経験があります。あなたとのビジネス関係を確立したいと思っています!

続きを読むお問い合わせを送信
<1>
中国製の工場から低価格で高級感のあるシリンダーナットをご安心してご購入いただけます。 Micro Precision Machineryは中国シリンダーナットの専門メーカーおよびサプライヤーであり、高品質、先進的、メンテナンスが容易で耐久性のある製品を提供できます。私たちの工場から熱い販売と安い製品を購入することを歓迎します、私たちの工場には割引があります。
